Food Packaging Line: Case Packing & Palletizing System
| MOQ: | 1 |
| Fiyat: | Negotiations |
| Standart ambalaj: | tahta sandık |
| Teslim süresi: | 40 |
| Ödeme yöntemi: | L/C,T/T |
automatic food packaging line
,case packing system for food
,palletizing system for packaging

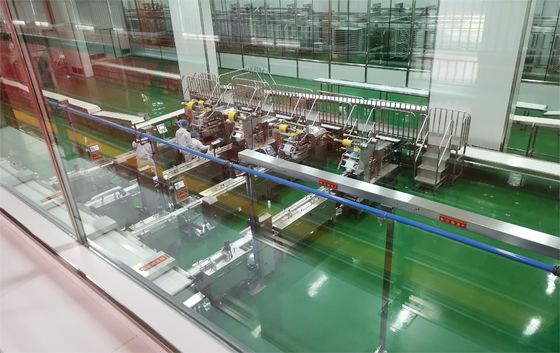

Plug & Play Automatic Food Packaging Conveyor Line / Modular Food Packing & Palletizing Line for Boxes
You already have a primary packaging machine — a VFFS, a pre‑made pouch filler, or a can seamer. What you may lack is an organized, automated system to take those finished bags or boxes and get them onto pallets. That is where a food packaging, case packing, and palletizing line comes in.
This modular line adds onto your existing equipment. It begins at the discharge of your current packer, collects products onto a conveyor, forms them into case patterns, loads the cases, seals them, and stacks the cases onto pallets. Each module — conveyor, case packer, palletizer — operates independently but communicates through a shared PLC.
For food plants that currently rely on manual case packing and pallet stacking, the labor savings are immediate. One operator can oversee the entire line instead of four people manually stacking. The case packer handles both regular slotted cartons and half‑slotted trays. The palletizer stores up to 30 layer patterns for different box sizes.
The system runs on standard shop air and 480V power. Installation requires no floor trenching or structural changes. Most buyers see full return on investment within 12 to 18 months. If your bottleneck is manual handling after the packer, this line solves it without replacing everything you already own.
- Noise Level: ≤78 dB
- Feeding Speed: 30 M/min
- Capacity: 35-150 Bags/min (Per Machine)
- Controller System: PLC
- Power Supply: 1Ph. 220V 50Hz
- Paper Bag Width: 180mm-430mm
- Functions: Dose, Form, Fill, Seal, Cut
- Optional Rejector: Air Blower/Swing Arm/Pusher
| Product Name | Automatic Packaging Line |
| Dimensions | 2300×850×1450mm |
| Capacity | 35-150 Bags/min (Per Machine) |
| Controller System | PLC |
| Quality Requirement | 250-350g/㎡ (Based on Carton Size) |
| Noise Level | ≤78 dB |
| Optional Rejector | Air Blower/Swing Arm/Pusher |
| Feeding Speed | 30 M/min |
| Functions | Dose, Form, Fill, Seal, Cut |
| Warranty | 1 Year, 12 Months |
| Paper Bag Width | 180mm-430mm |
- Increased Efficiency: Handles high-volume packaging, reducing manual labor and increasing productivity
- Precision and Consistency: PLC controller ensures accurate, uniform packaging, eliminating human error
- Cost-effective Operation: Reduces labor requirements, saving time and operational costs
- Improved Packaging Quality: Provides neat, professional packaging finish that enhances product presentation
- User-friendly Operation: Intuitive interface enables easy operation by any team member
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
