Zipper & Stand-Up Pouch Filler Sealer – Versatile Pre-Made Bag Packager
| MOQ: | 1 |
| Fiyat: | Negotiations |
| Standart ambalaj: | Nakliye için uluslararası standart ambalaj |
| Teslim süresi: | 10 metre |
| Ödeme yöntemi: | L/C,T/T,Western Union |
| Tedarik kapasitesi: | Yılda 300 takım |
Ayrıntılı Bilgiler
Menşe yeri
Şangay
Marka adı
Waylead
Sertifika
/
Model numarası
WG-250
Paketleme Hızı:
≦70 torba/dak
Çanta boyutu:
Uzunluk:≦400mm genişlik:130-260mm
Film Malzemesi:
Düz torbalar, dik duran torbalar, fermuarlı torbalar, kompozit film torbalar ve diğer türler.
Güç kaynağı:
380V
Hava Tüketimi:
5-7kg/cm2; 0,4m3/dak
Güç türü:
Elektrik
Güç Tüketimi:
8 KW
Malzeme:
Hidrolik Ön Çatal
Paketleme aralığı:
Granül Toz Sıvı
Vurgulamak:
Zipper pouch filler sealer machine
,Stand-up pouch packager with warranty
,Premade bag sealing machine versatile
Ürün Tanımı

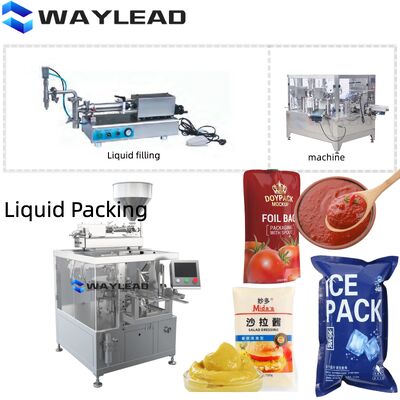

Zipper & Stand-Up Pouch Filler Sealer – One Machine for Reclosable and Doypack Bags
Stop buying separate machines for different bag styles. This universal pre-made pouch packager runs zipper bags, stand-up pouches, flat bags, and side gusset bags without mechanical changeover. The automatic filling and sealing system is designed for small to medium production lines handling snacks, powders, granules, liquids, or pastes.
The machine features a bag opening verification sensor that prevents filling misaligned pouches. For reclosable zipper bags, a dedicated zipper slider positions the track before sealing. For stand-up doypacks, bottom gusset openers ensure full bag expansion for consistent fill volume.
Change bag types in under 8 minutes using the recipe memory system. The touchscreen controls bag length, sealing temperature, and filling parameters. A built-in CIP-friendly structure allows quick cleaning between flavor or color changes.
This preformed bag packager delivers fast ROI for co-packers and private-label manufacturers handling multiple SKUs. Available with volumetric cup filler, multi-head weigher, or liquid pump. Request a video showing bag changeover from zipper to stand-up pouch in one continuous run.
Technical Specifications
| Specification | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700×1140×1470 mm | 1850×1250×1520 mm | 2100×1500×1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities
Particles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials
Powders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials
Liquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergents
Sauces
Tomato sauce, peanut butter, jam, chili sauce, bean paste
Other Materials
Various other products suitable for bagging
Key Features & Advantages
GMP Compliance & CE Certification
Dual authoritative certifications meet stringent quality and safety requirements for pharmaceutical, food, and healthcare sectors. Streamlines global market access and eliminates international trade barriers while safeguarding product quality and consumer health.
Full Servo Control System
Ultra-reliable, high-speed precision operation with reduced equipment failure rates and unplanned downtime. Adapts flexibly to variable packaging rhythms and fulfills high-throughput production demands with pinpoint accuracy in material dosing, zipper doypack forming, and heat sealing.
Intelligent Empty Bag Tracking
Real-time detection of bag presence with instant interlock control to prevent empty bag sealing. Reduces packaging material waste, slashes manual sorting labor, lowers production costs, and enhances finished product purity.
8-Station Integrated Structure
Seamless connection of multiple packaging processes governed by programmable PLC system. Features 6 user-friendly flat touch screens and intuitive HMI interface for hassle-free parameter setting, real-time production monitoring, and quick troubleshooting. Lowers operator training threshold and guarantees long-term stable production.
Complete Packaging Solutions
Our comprehensive packaging range includes VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
